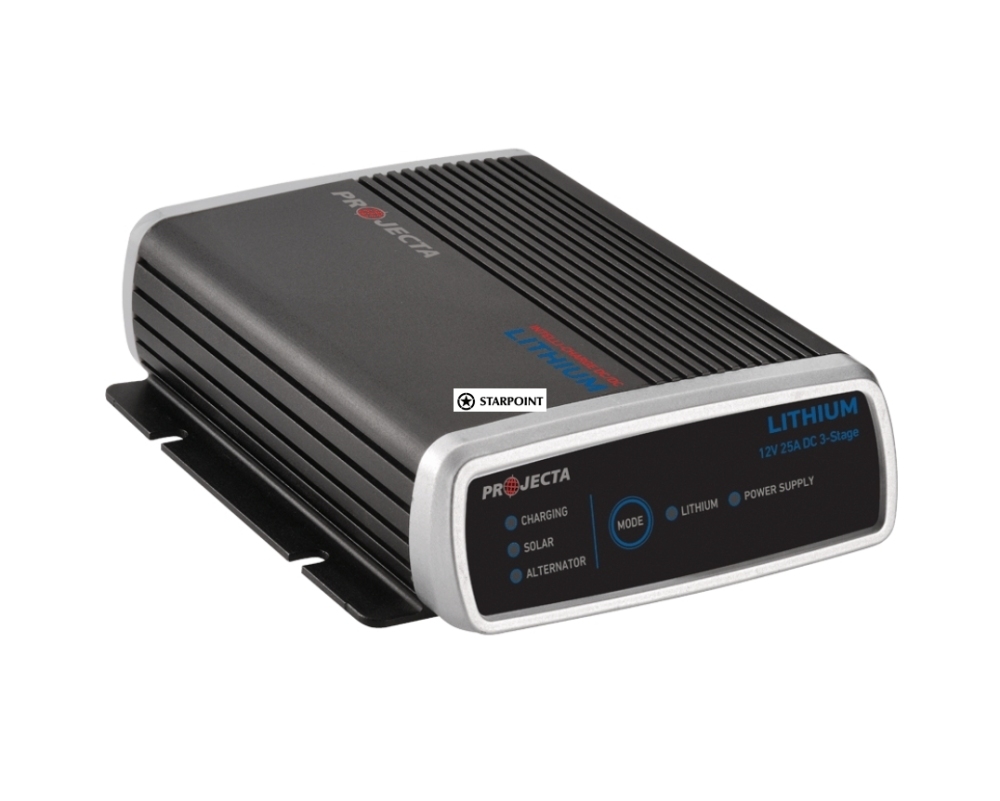

Lithium charging technology
Engineered for use with todays advanced lithium battery technology
Engine bay installation
Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C
Dual charging modes
Engineered to work with both smart and conventional alternators
Dual input operation
Simultaneous dual battery charging from both solar and alternator inputs
Total safeguard protection
Over temperature, reverse connection, over/under and spark free protection
| SPECIFICATIONS | |||||
|---|---|---|---|---|---|
|
PART NO |
IDC25L |
||||
|
CHARGE TYPE |
5 Stage |
||||
|
ALTERNATOR INPUT VOLTAGE |
9-32Vdc |
||||
|
MAX SOLAR INPUT |
28Vdc, 360W |
||||
|
OUTPUT CURRENT |
Input 9-11Vdc 20A, |
||||
|
BACK DRAIN ON AUX BATTERY |
9.5-10.5mA |
||||
|
CHARGING PROFILE |
1st Soft Start: 1.25A |
||||
|
BATTERY CAPACITY |
50-250Ah |
||||
|
BATTERIES SUPPORTED |
Lithium iron phosphate |
||||
|
SMART ALTERNATOR |
|
||||
|
CONVENTIONAL ALTERNATOR |
|
||||
|
OPERATING TEMPERATURE |
-10°C to +80°C |
||||
