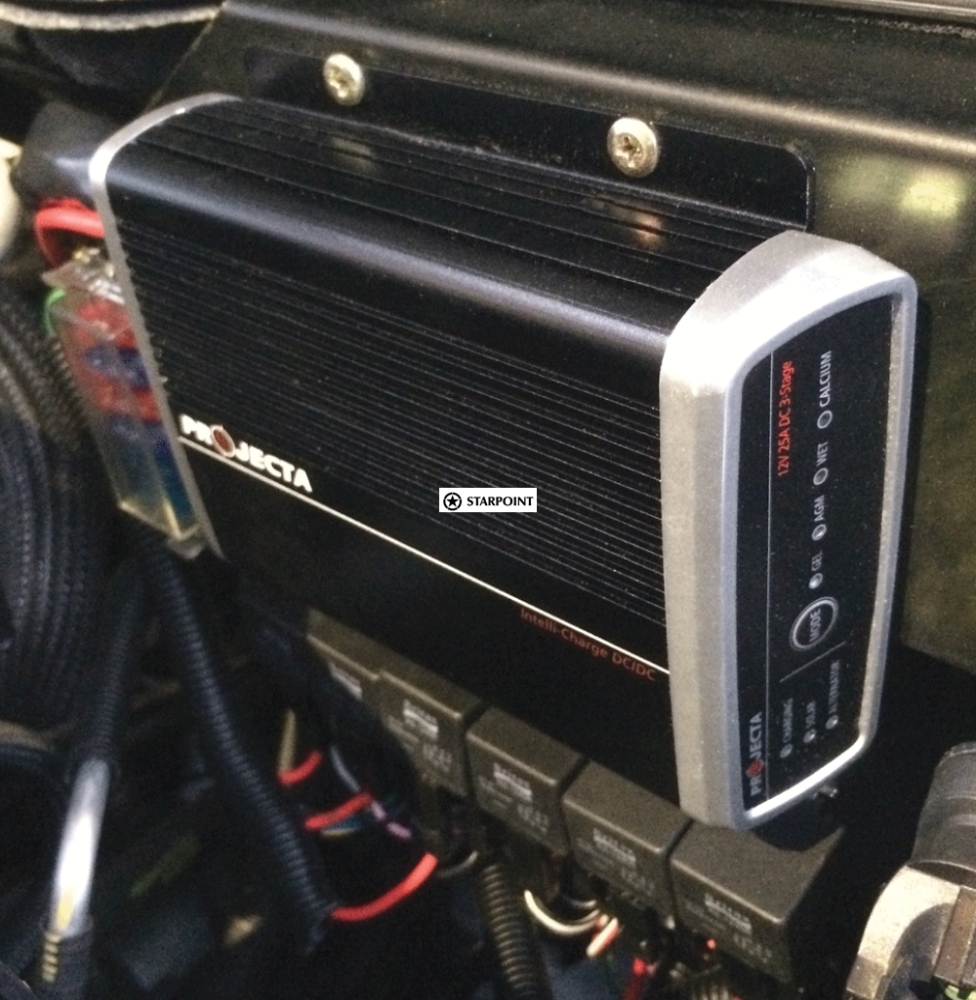

Engine bay installation
Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C
Dual charging modes
Engineered to work with both smart and conventional alternators
Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel

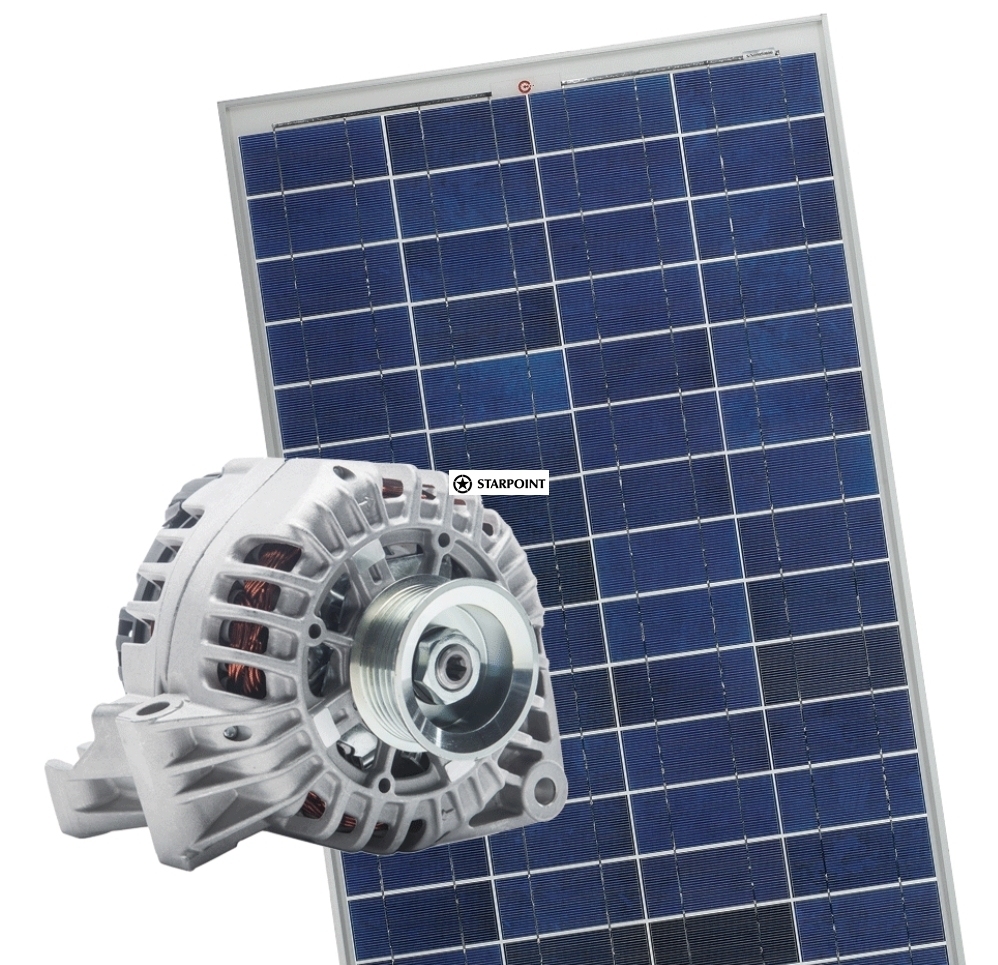

Dual input operation
Simultaneous dual battery charging from both solar and alternator inputs
Total safeguard protection
Over temperature, reverse connection, over/under and spark free protection
SPECIFICATIONS | |||||
---|---|---|---|---|---|
PART NO |
IDC25 |
||||
CHARGE TYPE |
3 Stage |
||||
ALTERNATOR INPUT VOLTAGE |
9-32Vdc |
||||
MAX SOLAR INPUT |
23Vdc, 385W |
||||
OUTPUT CURRENT |
Input 9-11Vdc 20A, |
||||
BACK DRAIN ON AUX BATTERY |
9.5-10.5mA |
||||
CHARGER CONTROL |
Gel: 14.1V, |
||||
BATTERY CAPACITY |
75-300Ah |
||||
BATTERIES SUPPORTED |
Gel, AGM, Wet & Calcium |
||||
SMART ALTERNATOR |
|
||||
CONVENTIONAL ALTERNATOR |
|
||||
OPERATING TEMPERATURE |
-10°C to +80°C |
