Approved output socket
AS/NZ approved 240V sockets. Inverter designed to Australian standard AS4763

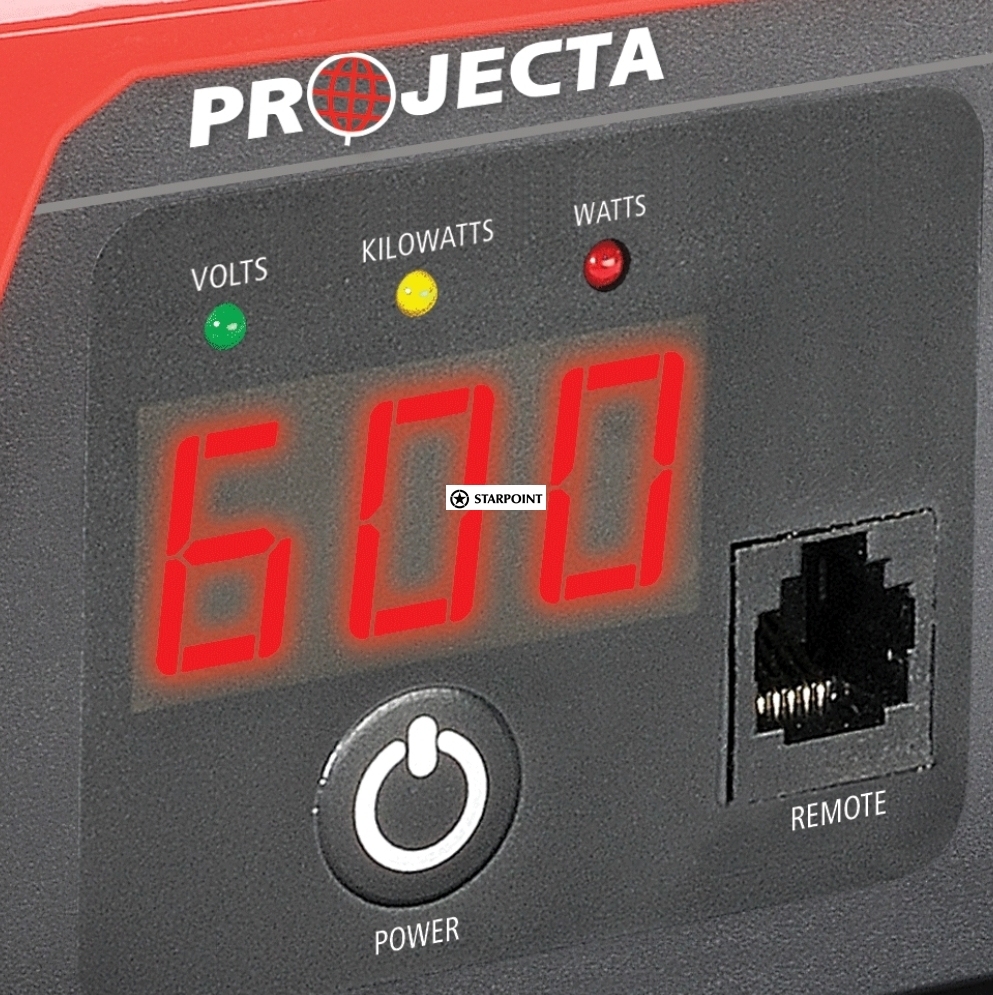

Digital display
LED display provides information on battery voltage, power usage and load capacity

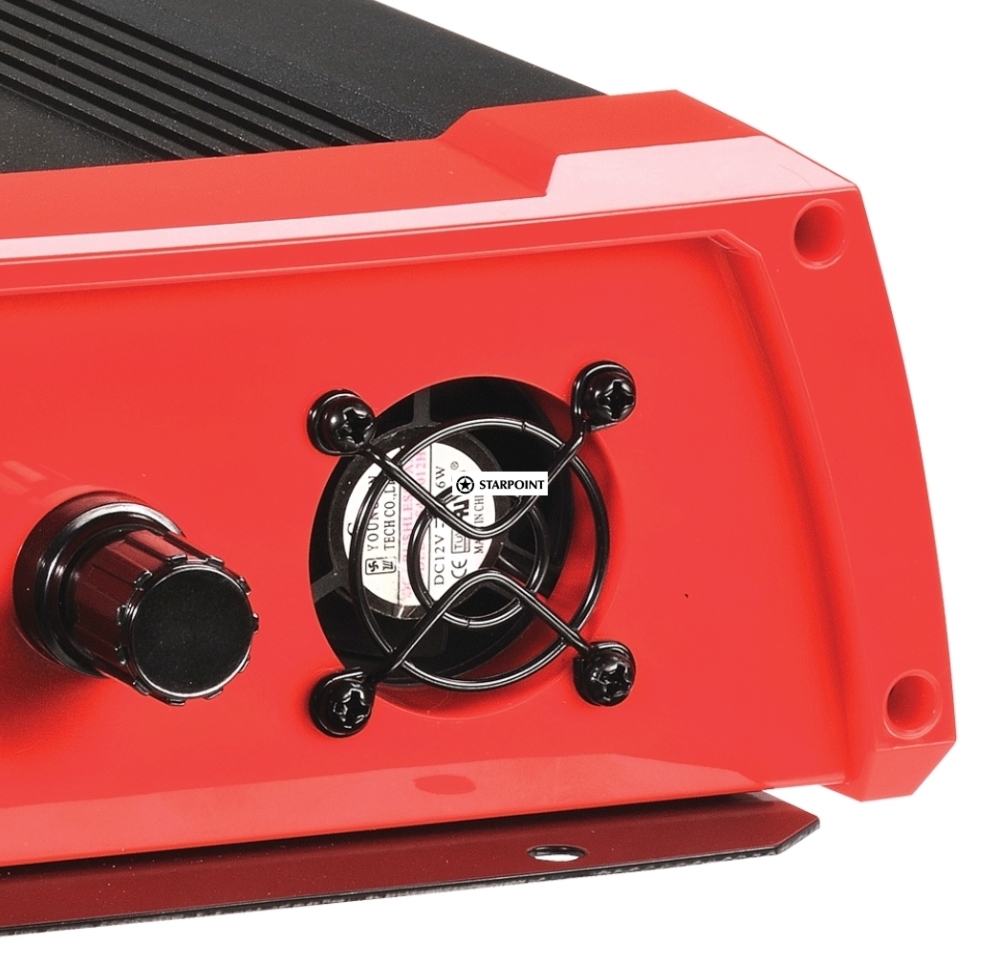

Thermostatically controlled cooling fan
Cools inverter to allow it to work harder for longer

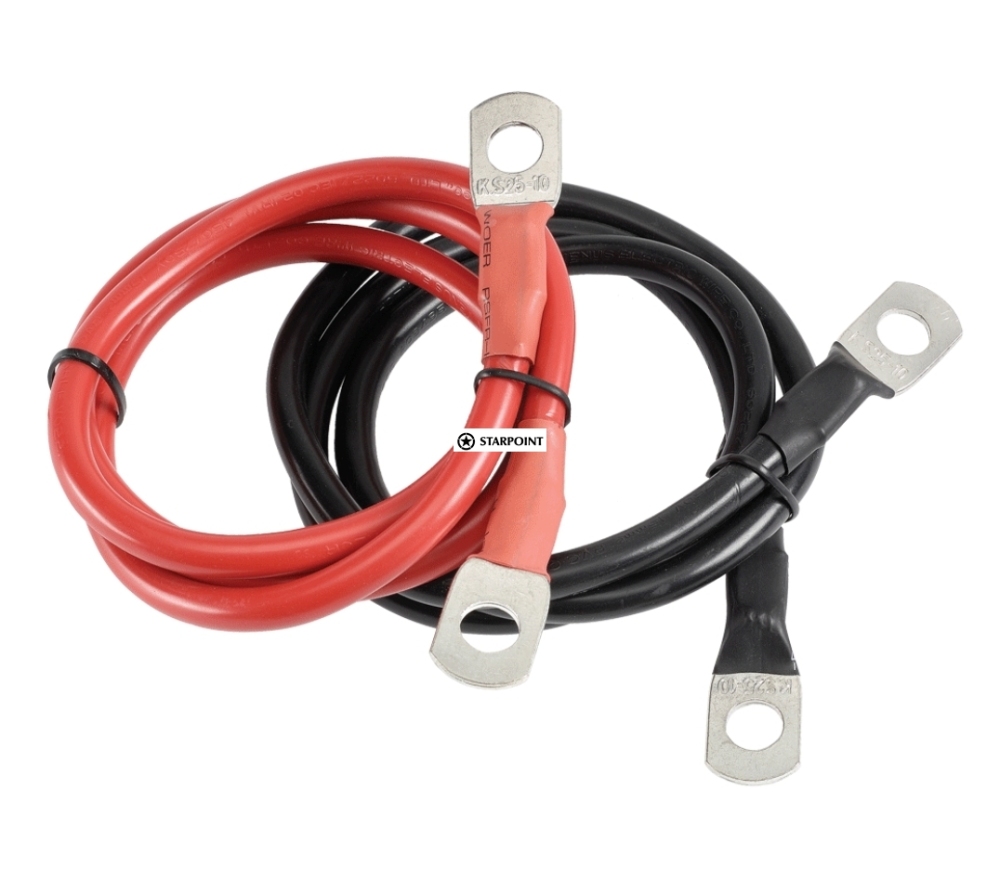

Wiring kit
Battery lugs with 1050mm 13.3mm2 battery cable

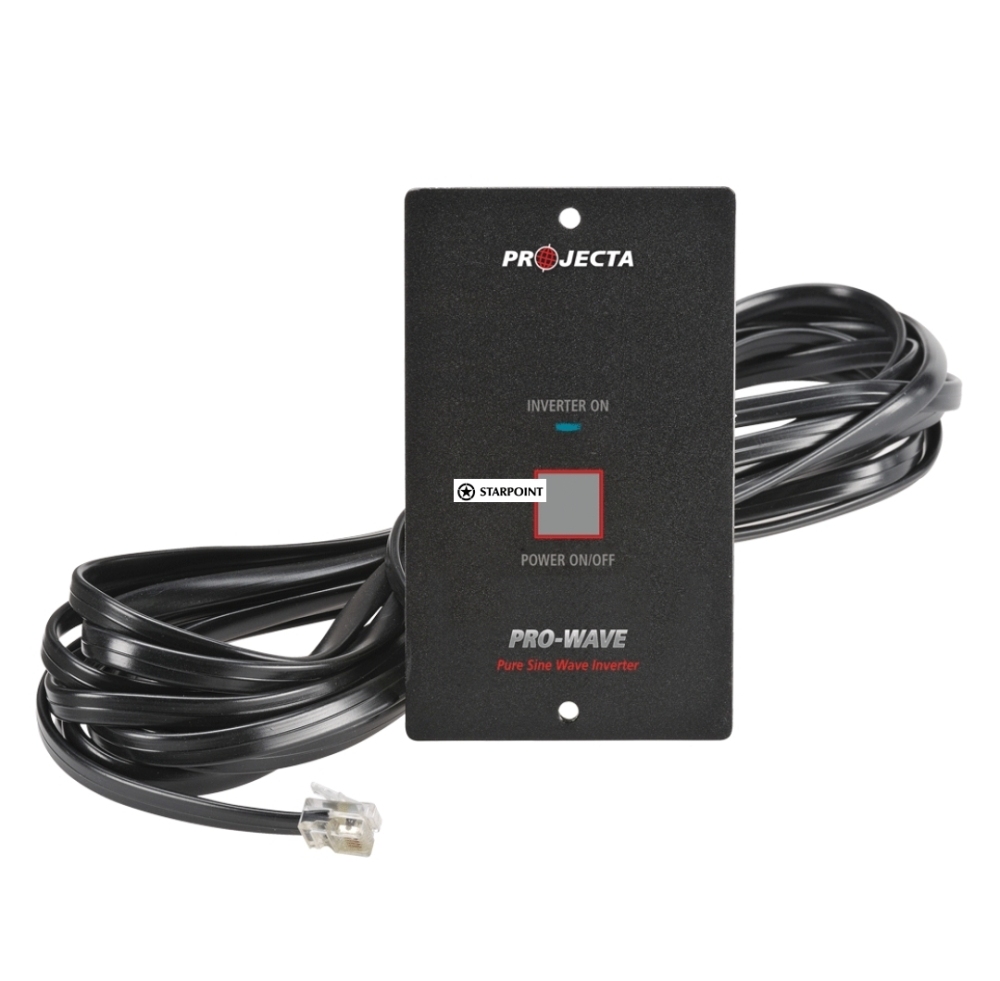

Optional remote control
Optional remote control enabling the inverter to be stowed out of sight, keeping the cabin area uncluttered
| SPECIFICATIONS | |||
|---|---|---|---|
|
PART NO |
PW900 |
||
|
INPUT |
12V DC, 90A Max |
||
|
NO LOAD CURRENT DRAW |
0.8A |
||
|
OUTPUT |
240VAC, 50Hz (Pure Sine Wave) |
||
|
OUTPUT POWER |
900W Continuous (1800W Peak) |
||
|
INVERTER CLASSIFICATION |
Equipotentially Bonded (EPB) |
||
|
EFFICIENCY |
85% |
||
|
LOW BATTERY ALARM |
10.5 Volt |
||
|
SHUTDOWN |
10.0 Volt (±0.2V) |
||
|
COOLING FAN |
Automatic temperature controlled |
||
|
THERMAL SHUTDOWN |
65°C (±5°C) |
||
|
FUSE |
125A (5 x 25A Internal Mini Blade Fuse) |
||
|
IDEAL BATTERY SIZE |
75–250Ah |
||
|
MINIMUM BATTERY SIZE |
75Ah, 550CCA |
||
|
RUN TIME WITH 900W ON 75Ah BATTERY |
15 minutes |
||
|
RUN TIME WITH 100W GLOBE ON 75Ah BATTERY |
6 hours |
||
|
APPROVALS |
Electrical Safety, EMC |
||
