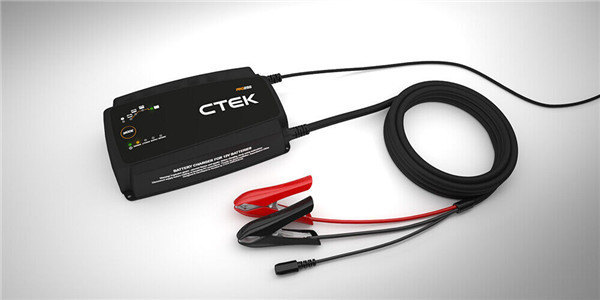

CTEK New PRO25S Revised MXS 25 Battery Charger 25 Amp 12 V
The MXS 25 is a professional 12V charger. It offers efficient and fast charging and is ideal for workshops, caravan, RVs and boats. The MXS 25 is equipped with all necessary features and functions to solve a broad range of battery-related problems. It offers features such as battery diagnosis that shows if a battery can receive and retain a charge, special reconditioning batteries, unique maintenance charging and a temperature sensor for optimised charging regardless of the weather conditions. It also has a power supply mode which allows the battery to be disconnected from the vehicle without losing important configurations.
The MXS 25 is a fully automatic 8-steps charger that delivers 25A to 12V batteries from 40-500Ah. The charger is IP 44 classified (outdoor use), designed to protect vehicle electronics and non-sparking, reverse polarity protected and short-circuit proof. The MXS 25 is delivered with a 2-year warranty.
Specifications:
Volt: 12V
Rated Voltage AC: 220-240VAC, 50-60Hz
Charging voltage: NORMAL: 14.7V, RECOND: 15.8V, SUPPLY: 13.6V
Min battery voltage: 2.0V
Charging current: 25A max
Current mains: 2.9A rms (at full charging current)
Back current drain: <1Ah/month
Ripple: 4%
Ambient temperature: -20°C to +50°C, output power is reduced automatically at high temperature.
Charger type: 8 step, fully automatic charging cycle.
Battery types: All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
Battery capacity: 40-500Ah up to 500Ah for maintenance
Dimensions: 235 x 130 x 65mm (L x W x H)
Insulation class: IP44
Weight: 1.9g
